Isuzu G-IDSS – Official Diagnostic Software for Isuzu Vehicles

Isuzu G-IDSS (Global Isuzu Diagnostic Service System) is specialized Isuzu diagnostic software used by dealers and service centers worldwide. It is an essential tool for technicians working on Isuzu trucks and commercial vehicles. With this Isuzu diagnostic software, you can:

Perform full system diagnostics on electronic systems, ECUs, control modules, and vehicle sensors.
Access Isuzu repair manuals and detailed maintenance guides, standardized by the manufacturer.
View Isuzu wiring diagrams, making troubleshooting faster and more accurate.
Receive official recommendations from Isuzu, ensuring correct repair procedures while saving time and costs.

Isuzu IDSS provides workshops and technicians with the ability to read fault codes – clear codes – perform programming – and access technical documentation within a single platform, guaranteeing efficient and professional service.

Isuzu G-IDSS

SOFTWARE FUNCTION

If all Interface Device and vehicle connections are ok, this will connect to the vehicle and display current vehicle information.

Once a connection to the vehicle has been established, the following functionality is accessible:

Read - Erase fault code (DTCs)
Data List
Actuator Test
Programming
Special Functions
Module Information
Service manuals

No information available

Isuzu G-IDSS Version 2025 UPDATED

Region: ALL REGIONS (Without Canada and USA)

Domestic
Export
Other

Isuzu model year from 2007-2025

Series C&E
Series F&G
Series LV
Series N
Series Q
Series TF
Series F
Series UC
ELF
ELF MIO
FORWARD
ERGA
ERGA Mio
GIGA
EV LV-series
EV N-Series
More…

Isuzu Engine:

4HK1
4JJ1
4JJ3
4JZ1
4HV1
RZ4E
6HK1
6UZ1
6NX1
6WG1
ZF AxTraX AVE
DB6A
More…

HARDWARE REQUIREMENT

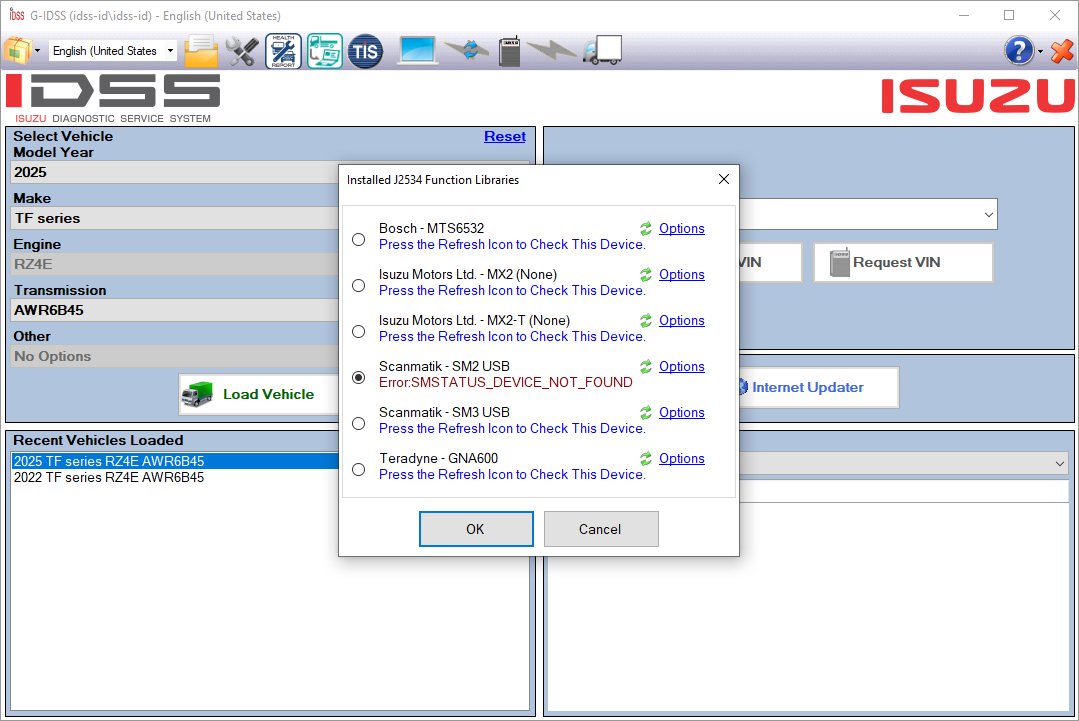

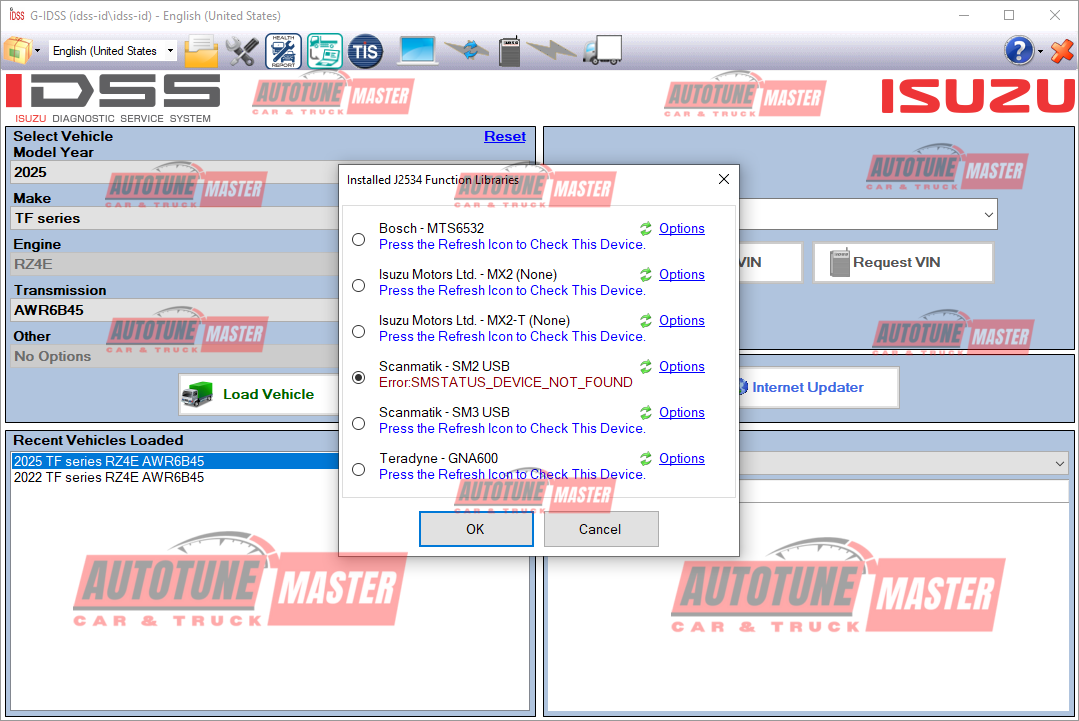

This application requires SAE J2534 hardware. The following is tested J2534 hardware:

The following interface box is an example, either one is used in the scanning tool.

Isuzu Interface Box MX2 (Please purchase with the nearest Isuzu dealer)
Drew Technologies – CarDAQ-Plus/Mongoose (General-purpose products)
General Motors – MDI (General-purpose products)
DPA5
Nexiq USB link 1, 2,3
J2534 Passthrus

PC REQUIREMENTS
The PC that the Isuzu Diagnostic Service System (IDSS) program is installed on must meet the following minimum operating requirements or the program may not properly install or operate:

Standalone Laptop PC or Desktop PC with hard drive partitioned.
Windows 10 and Windows 11 (32 bit/64 bit) * Please make sure to keep up with the latest Windows update version.
2.0 GHz Pentium Processor
70 GB Hard Drive Minimum (100 GB Hard Drive Recommended)
2 GB (32 bit) or 4 GB (64 bit) RAM
DVD 8X Drive (Single Layer)
DVD 6X Drive (Dual Layer)
2.0 USB Port
Hi-Speed Internet Connection * A constant internet connection is required to use some features.
PC screen resolution set to at least 1024×768 to ensure proper functionality. Use the Control Panel PC Display Settings to change your screen resolution, if required.
